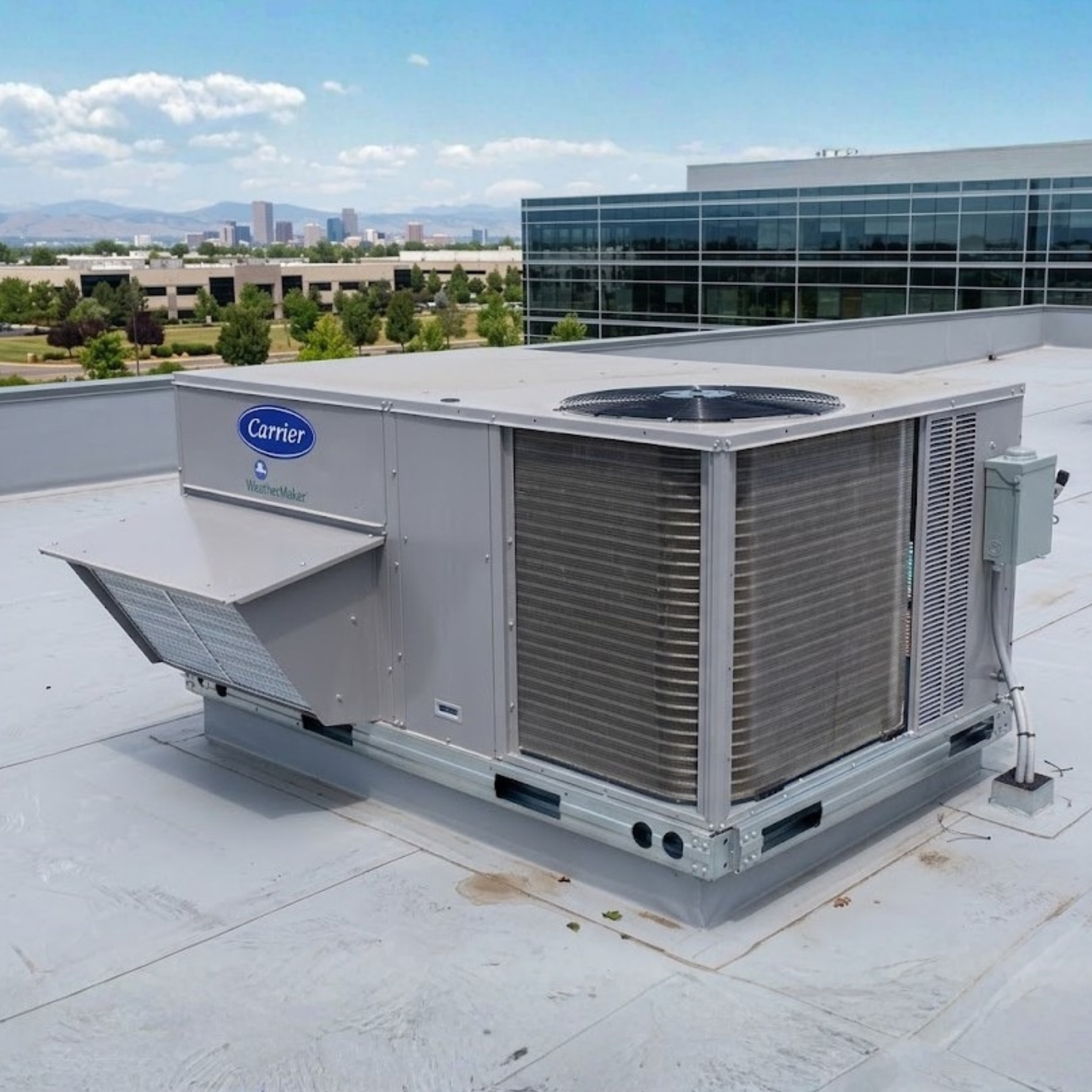

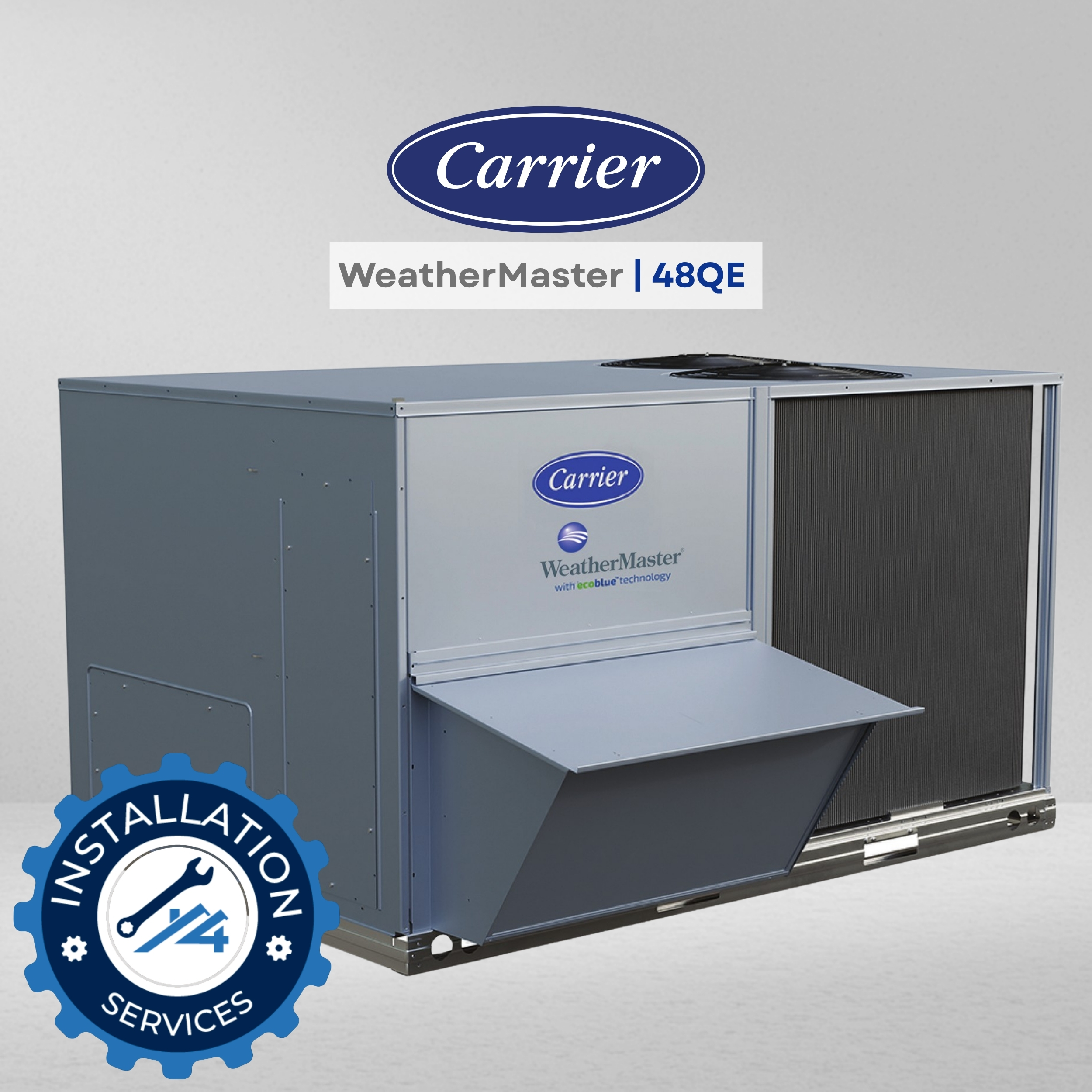

Carrier WeatherMaster® 48QE Hybrid Heat Rooftop Unit – Supplied & Professionally Installed by 4Most Energy
The WeatherMaster® 48QE is a single-package hybrid heat rooftop unit that pairs a two-stage heat pump with gas heat backup, sized 6 to 10 nominal tons for larger commercial and light-industrial buildings. Two tandem scroll compressors run on Puron AdvanceTM (R-454B) refrigerant — GWP of 466, well under the EPA’s <700 GWP requirement — delivering up to 17.0 IEER and 12.3 EER in cooling, with heat pump heating rated at a 3.70 COP at 47°F ambient and 2.30 COP at 17°F ambient before the unit’s stainless steel heat exchanger provides gas backup. Gas heat is available in low, medium, and high input configurations up to 240/195 MBH input/output on the 10-ton size, with an integrated gas controller (IGC), direct-spark ignition, and redundant main gas valve delivering 81–82% thermal efficiency. Because R-454B is a mildly flammable A2L refrigerant, every unit ships with a factory-installed refrigerant leak dissipation system — a dedicated control board and UL-certified sensor that automatically detects and dissipates a leak with no field wiring required. All 48QE units meet DOE and ASHRAE 90.1 minimum efficiency requirements, are AHRI 340/360 certified, and are UL listed to ANSI Z21.47 and UL 60335-2-40.
Rated performance depends entirely on correct field installation. Ontario installations require licensed TSSA gas technician sizing of the gas line and meter for backup heat, combustion and gas-train testing at start-up, and induced-draft venting configured per the unit’s discharge orientation. Roof curb selection (14 in. or 24 in.), structural load review, electrical service sized to the unit’s voltage (208-230/460/575V, 3-phase) and combined heat pump/gas MCA/MOCP rating, and ESA-compliant thru-the-base electrical connections are equally code-driven. 4Most Energy is a certified installer for hybrid heat pump rooftop installation Toronto, packaged rooftop replacement GTA, and Carrier WeatherMaster 48QE installation Ontario projects, providing licensed gas technician near me-level combustion testing and A2L refrigerant commissioning, and ENERGY STAR–calibre hybrid heat rooftop Toronto service standards on every job — so the IEER, heating COP, and low-ambient performance figures on the nameplate are what the building actually gets.
Warranty
Carrier backs the WeatherMaster® 48QE with a 3-year limited parts warranty from the factory.
4Most Energy handles warranty registration and start-up documentation on your behalf.
Documents
Why Install the Carrier WeatherMaster® 48QE with 4Most Energy?
- Puron AdvanceTM (R-454B) refrigerant GWP of 466, comfortably under the EPA’s <700 GWP requirement, with a factory-installed A2L refrigerant leak dissipation system standard on every unit for automatic leak detection and mitigation.
- Hybrid Heat pairing a two-stage heat pump as the primary heat source, backed by gas heat that engages automatically when mechanical heating can no longer efficiently meet the load, for a more sustainable heat source than electric strip heat.
- EcoBlueTM vane axial indoor fan system direct-drive ECM motor, 75% fewer moving parts than belt-drive designs, up to 40% better efficiency, and slow ramp-up for quieter, more reliable operation.
- Two-stage tandem scroll compressors with fully active evaporator coil and internal line-break overload protection.
- SystemVuTM intelligent controller (standard) large multi-line display, USB data port, and built-in i-Vu®, CCN, and BACnet compatibility, meeting California Title 24 Fault Detection and Diagnostic (FDD) requirements.
- Optional Humidi-MiZer® adaptive dehumidification system sub-cooling and hot gas reheat modes for improved part-load humidity control.
- Optional low ambient controller extends cooling operation down to -20°F ambient (size 09 units operate down to 0°F standard without the accessory).
- Single point gas and electrical connections for simplified rooftop wiring and piping.
- Tool-less filter access door and no-strip screw collars throughout for faster service and field repairs.
- “Replacement original” fit design engineered to land on existing roof curbs, easing gas-to-hybrid or heat-pump-to-hybrid conversions.
Specifications
| Model | Nominal Tons | Net Cooling (MBH) |
EER | IEER (2-speed) |
Rated CFM | Sound (dBA, A-wtd) |
Base Unit Weight (lb) |
|---|---|---|---|---|---|---|---|
| 48QE*07 | 6.0 | 72.0 | 12.3 | 17.0 | 2,600 | 81 | 839 |
| 48QE*08 | 7.5 | 90.0 | 12.0 | 17.0 | 3,000 | 83 | 875 |
| 48QE*09 | 8.5 | 100.0 | 12.0 | 17.0 | 3,200 | 87 | 1,010 |
| 48QE*12 | 10.0 | 116.0 | 11.8 | 16.4 | 4,400 | 83 | 1,296 |
Ratings per AHRI Standards 340/360 at 80°F/67°F wb indoor, 95°F db outdoor (cooling).
Heat Pump Heating Performance
| Performance Metric | 48QE*07 | 48QE*08 | 48QE*09 | 48QE*12 |
|---|---|---|---|---|
|
Low Temp. Net Heating @ 17°F Amb. (Btu/hr) |
36,000 | 45,000 | 52,000 | 60,000 |
| Low Temp. COP | 2.30 | 2.30 | 2.35 | 2.35 |
|
High Temp. Net Heating @ 47°F Amb. (Btu/hr) |
67,000 | 87,000 | 94,000 | 108,000 |
| High Temp. COP | 3.70 | 3.60 | 3.50 | 3.50 |
Gas Backup Heat Specifications
| Gas Heat Level | 07 (Input/Output MBH) |
08 (Input/Output MBH) |
09 (Input/Output MBH) |
12 (Input/Output MBH) |
|---|---|---|---|---|
| Low | 55/41 – 72/59 | 90/66 – 125/103 | 90/66 – 125/103 | 120/98 – 150/121 |
| Medium | 90/66 – 125/103 | 120/98 – 180/148 | 120/98 – 180/148 | 144/116 – 180/146 |
| High | 115/96 – 150/123 | 180/146 – 224/181 | 180/146 – 224/181 | 192/155 – 240/195 |
The 48QE is sized first by cooling load (6–10 nominal tons) using a proper commercial load calculation not by matching the tonnage of the unit being replaced, since older rooftop units on the same curb were frequently oversized by the standards of their era.
Because the heat pump is the primary heat source, sizing should also weigh the building’s design heating load against the unit’s heat pump output at 17°F and 47°F ambient (see the Heat Pump Heating Performance table) to confirm gas backup engagement frequency will be reasonable for the climate zone, and whether the optional low ambient controller (extending operation to -20°F) is warranted for the site. Sound-sensitive sites should note that the size 09 unit rates louder (87 dBA) than the 07, 08, and 12 sizes (81–83 dBA). 4Most Energy performs load calculation, gas and electrical capacity verification, and roof structural review as part of every quote before ordering.
Carrier 48QE Installation & Commissioning Process
| Step | Phase | Description & Key Requirements |
|---|---|---|
| Step 1 | Site Assessment | Existing unit and curb inspection, gas service and meter capacity check, electrical service review, and roof structural/access evaluation. |
| Step 2 | Load Calculation & Sizing | Confirm correct tonnage, gas backup heat level, low ambient controller need, airflow configuration, and controller setup (SystemVu™ standard). |
| Step 3 | Rigging & Crane Setup | The 48QE’s lighter base-rail design and rigging shackles simplify crane placement onto the existing or new roof curb. |
| Step 4 | Roof Curb & Prep | Install or verify 14 in./24 in. roof curb, full-perimeter seal, and structural support for the unit’s operating weight. |
| Step 5 | Gas Line & Venting | Licensed TSSA gas technician sizes and connects the gas line for backup heat, verifies supply pressure, and configures induced-draft venting for the unit’s discharge orientation. |
| Step 6 | Electrical Connection | ESA-compliant hookup to the building’s disconnect, sized to the unit’s voltage, phase, and combined heat pump/gas MCA/MOCP rating, with thru-the-base connections as specified. |
| Step 7 | Ductwork Tie-in | Supply and return duct connection with turning vanes and sealed transitions. |
| Step 8 | Commissioning | Refrigerant charge verification, A2L leak dissipation system self-test, combustion analysis and gas train test, heat pump/gas changeover setpoint configuration, and airflow confirmation, with warranty registration filed. |
| Step 9 | Final Walkthrough | Filter access, service clearances, and SystemVu™ controller operation demonstrated before the crew leaves site. |
Carrier’s standard coverage on the WeatherMaster® 48QE is a 3-year limited parts warranty from the factory. 4Most Energy completes and files the required start-up and combustion test documentation to keep warranty coverage valid.
Routine maintenance is straightforward by design: the EcoBlueTM direct-drive fan requires no belts, pulleys, or shaft bearings to inspect or replace, and the tool-less filter door simplifies the most frequent service task. Carrier recommends annual combustion testing and gas train inspection, refrigerant leak dissipation system self-test verification, condenser coil cleaning, and condensate drain pan/trap inspection. 4Most Energy offers scheduled maintenance plans covering filter changes, combustion analysis, refrigerant circuit and A2L leak sensor checks, and control board diagnostics via the unit’s built-in LED status indicators and SystemVuTM display.
Service Area
Greater Toronto Area (GTA) and surrounding regions
Toronto, Markham, Richmond Hill, Vaughan, Aurora, Newmarket, Scarborough, Brampton, and Mississauga.
Extended Service Area: Stouffville, Oshawa, Barrie, Orangeville, Hamilton, St. Catharines, Guelph, Kitchener.
Frequently Asked Questions
How is the 6–10 ton 48QE different from Carrier’s smaller 3–5 ton 48QE hybrid unit?
Both share the same Hybrid Heat pairing of heat pump plus gas backup and Puron AdvanceTM (R-454B) refrigerant, but this 6–10 ton line is built for larger commercial and light-industrial spaces, with a higher top-end IEER (17.0) and heating COPs up to 3.70, at the tradeoff of a higher standard sound rating (81–87 dBA vs. a flat 79 dBA on the smaller line).
Is R-454B refrigerant safe to use in an occupied building?
Yes — R-454B is a mildly flammable (A2L) refrigerant with a GWP of 466, and Carrier equips every 48QE with a factory- installed, UL-certified refrigerant leak dissipation system that automatically detects and mitigates a leak without field wiring. It must be installed and serviced by a licensed refrigeration mechanic, which 4Most Energy provides on every job.
Is the 48QE a direct replacement for our existing rooftop unit?
In most cases the unit’s “replacement original” fit design lands on existing roof curbs and many competitor curbs without modification, though 4Most Energy always verifies curb dimensions, gas/electrical connection points, and structural load before ordering.
How cold can it get before the 48QE stops running on the heat pump alone?
Standard controls permit compressor operation down to 40°F ambient for cooling and rate heating performance at 17°F ambient; an optional low ambient controller extends cooling operation to - 20°F, and the size 09 unit operates down to 0°F standard. Below the heat pump’s effective range, gas backup takes over automatically.
