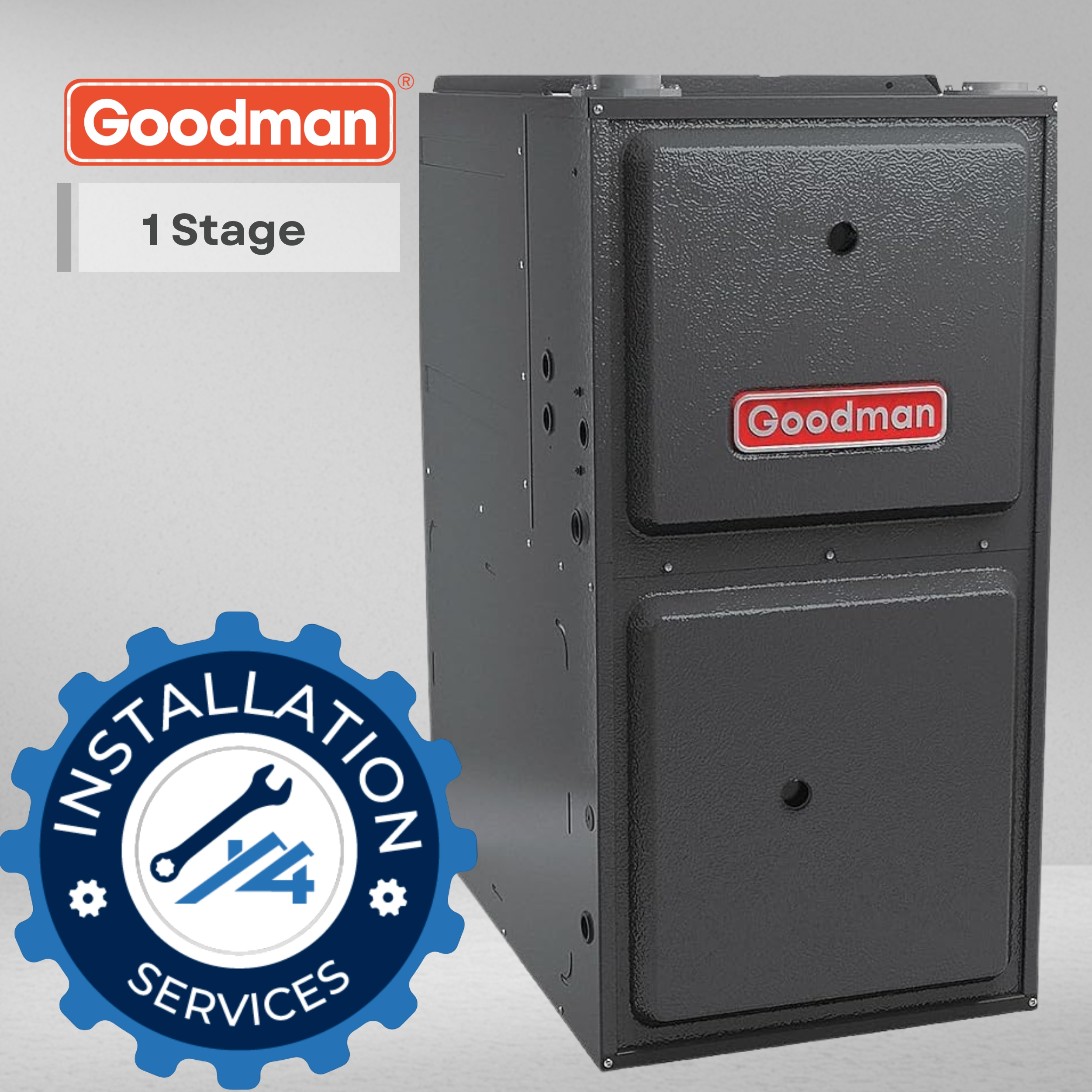

Goodman GR9S96 Gas Furnace – Supplied & Professionally Installed by 4Most Energy
Choosing the right furnace is only part of creating a comfortable and energy-efficient home. Proper sizing and professional installation are equally important to ensure reliable performance, lower operating costs, and long equipment life. At 4Most Energy, every Goodman GR9S96 installation begins with a complete heating assessment to determine the ideal furnace capacity based on your home's square footage, insulation levels, ductwork, and overall heating requirements.
The Goodman GR9S96 combines up to 97% AFUE efficiency with a single-stage gas valve and a nine-speed ECM blower motor to deliver consistent heating while reducing energy consumption. Its heavy-duty aluminized-steel tubular primary heat exchanger and stainless-steel secondary heat exchanger are engineered for durability and dependable long-term performance. Low NOx combustion technology helps reduce emissions while meeting modern environmental standards.
Installation flexibility is another advantage of the GR9S96 series. The furnace is certified for direct vent (2-pipe) or non-direct vent (1-pipe) applications and supports upflow and horizontal installation configurations, making it suitable for many residential mechanical rooms. Convenient left- or right-side gas and electrical connections simplify installation while reducing labor requirements.
Every installation includes removal of existing equipment (where applicable), professional installation, system connections, airflow adjustment, safety testing, and final commissioning to ensure your new furnace operates at peak performance from day one.
Why Install the Goodman GR9S96 with 4Most Energy?
- Up to 97% AFUE efficiency
- Heavy-duty aluminized-steel tubular primary heat exchanger
- Stainless-steel secondary heat exchanger
- Single-stage gas valve
- Nine-speed ECM blower motor
- Quiet single-speed induced draft blower
- Self-diagnostic control board with LED fault history
- Silicon nitride hot surface igniter
- Low NOx compliant (40 ng/J emissions standard)
- Direct vent (2-pipe) or non-direct vent (1-pipe) installation
- Upflow and horizontal installation compatible
- Fully insulated heavy-gauge steel cabinet
- Cabinet air leakage ≤2%
- AHRI Certified
- ETL Listed
Goodman GR9S96 Specifications
| Specification | Details |
|---|---|
| Brand | Goodman |
| Series | GR9S96 |
| Product Type | High-Efficiency Gas Furnace |
| Fuel Type | Natural Gas |
| Heating Stage | Single Stage |
| AFUE | Up to 97% |
| Blower Motor | Nine-Speed ECM |
| Heat Exchanger | Heavy-duty Aluminized Steel Primary / Stainless Steel Secondary |
| Venting | Direct Vent (2-Pipe) or Non-Direct Vent (1-Pipe) |
| Installation Positions | Upflow / Horizontal Left / Horizontal Right |
| Electrical Supply | 115V / 60Hz / Single Phase |
| Gas Connection | ½" FPT |
| Cabinet | Fully Insulated Heavy-Gauge Steel |
| Ignition | Silicon Nitride Hot Surface Igniter |
| Certifications | AHRI Certified, ETL Listed |
Goodman GR9S96 Model Comparison
| Model | Heating Capacity | AFUE | Recommended Home Size | Occupants |
|---|---|---|---|---|
| GR9S960403AN | 40,000 BTU | 97% | Up to 1,200 sq. ft. | 1–3 People |
| GR9S960603BN | 60,000 BTU | 97% | 1,200–2,000 sq. ft. | 3–5 People |
| GR9S960803BN | 80,000 BTU | 96.1% | 2,000–3,000 sq. ft. | 4–6 People |
Step 1 — Request Your Quote Submit your request online or contact our team.
Step 2 — Home Heating Assessment We evaluate your home's heating requirements and existing HVAC system.
Step 3 — Equipment Recommendation We recommend the properly sized Goodman GR9S96 model.
Step 4 — Schedule Installation Choose a convenient installation date.
Step 5 — Remove Existing Equipment Old furnace removal and environmentally responsible disposal.
Step 6 — Professional Installation Installation includes venting, gas piping, electrical connections, thermostat setup, condensate drainage, and system commissioning.
Step 7 — Safety Testing Complete inspection of gas pressure, combustion, airflow, and electrical operation.
Step 8 — Final Walkthrough System demonstration, maintenance recommendations, and warranty registration guidance.
The Goodman GR9S96 furnace is backed by one of the industry's strongest warranty programs when installed by a qualified contractor and registered within 60 days of installation.
Manufacturer Warranty
- 99-Year Limited Heat Exchanger Warranty
- 10-Year Parts Limited Warranty
- 10-Year Unit Replacement Limited Warranty (registration required)
4Most Energy also provides a workmanship warranty covering the quality of the installation.
Maintenance Plan
Protect your investment with a Maintenance Plan starting from only $12.99/month, which includes:
- Annual furnace inspection
- Safety testing
- Performance tune-up
- Priority service scheduling
- Reduced repair costs
- Improved efficiency
- Extended equipment lifespan
