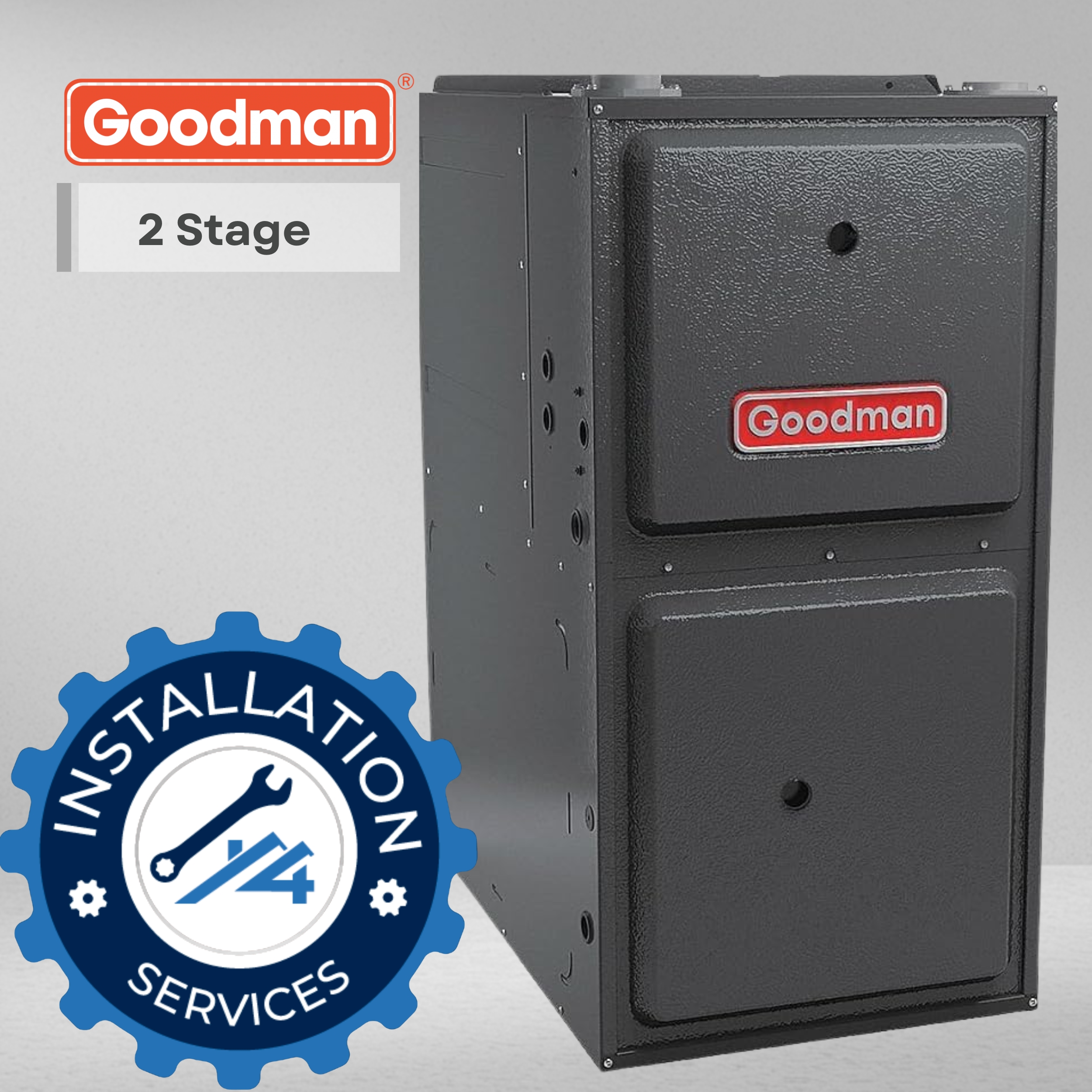

Goodman GR9T96 Gas Furnace – Supplied & Professionally Installed by 4Most Energy
The Goodman GR9T96 Series combines advanced heating performance with dependable engineering to provide efficient home comfort throughout the heating season. Featuring a two-stage gas valve and a multi-speed ECM blower motor, the furnace automatically adjusts heating output based on household demand, helping maintain more consistent indoor temperatures while reducing energy consumption.
The Goodman Two-Stage Furnace Built with a heavy-duty aluminized-steel tubular primary heat exchanger and a stainless-steel secondary heat exchanger, the GR9T96 is engineered for long-term durability and reliable operation. The multi-speed ECM blower enhances airflow efficiency while operating more quietly than conventional PSC blower motors. A self-diagnostic control board with LED fault code display simplifies servicing and maintenance.
The furnace is certified for both direct vent (2-pipe) and non-direct vent (1-pipe) installations, allowing flexibility to accommodate different home layouts. Upflow models also support optional side venting where installation conditions require it. Proper vent sizing, gas line capacity, combustion air supply, electrical connections, condensate drainage, and ductwork design are all critical to achieving the furnace's rated performance.
Selecting the correct furnace size is equally important. An oversized furnace may short cycle, while an undersized unit may struggle to maintain comfort during extreme winter conditions. At 4Most Energy, every installation begins with evaluating your home's heating requirements, insulation levels, duct system, and overall load to ensure the selected furnace delivers efficient, reliable, and consistent comfort for years to come.
Why Install the Goodman GR9T96 with 4Most Energy?
- Up to 97% AFUE energy efficiency
- Two-stage gas valve for improved comfort
- Multi-speed ECM blower motor
- Heavy-duty aluminized-steel primary heat exchanger
- Stainless-steel secondary heat exchanger
- Quiet two-speed induced draft blower
- Self-diagnostic control board with LED fault history
- Certified for direct vent or non-direct vent installation
- Multi-position installation (upflow or horizontal)
- Low NOx compliant design (40 ng/J standard)
GR9T96 Series Specifications
| Specification | GR9T96 Series Details |
|---|---|
| Models | GR9T960303AN, GR9T960403AN, GR9T960603BN, GR9T960803BN, GR9T961004CN, GR9T961205DN |
| Heating Capacity | 30,000–120,000 BTU/h |
| AFUE | Up to 97% |
| Fuel Type | Natural Gas |
| Gas Valve | Two-Stage |
| Blower Motor | Multi-Speed ECM |
| Heat Exchanger | Aluminized Steel Primary / Stainless Steel Secondary |
| Venting | Direct Vent (2-Pipe) or Non-Direct Vent (1-Pipe) |
| Vent Size | 2–3 in. PVC (application dependent) |
| Electrical | 115V / 60Hz / Single Phase |
| Installation | Upflow / Horizontal |
| Gas Connection | ½ in. FPT |
GR9T96 Model Sizing Guide
| Model | Heating Capacity | Recommended Home Size* | Recommended Occupants |
|---|---|---|---|
| GR9T960303AN | 30,000 BTU | Up to 1,000 sq. ft. | 1–2 |
| GR9T960403AN | 40,000 BTU | Up to 1,400 sq. ft. | 2–3 |
| GR9T960603BN | 60,000 BTU | Up to 2,000 sq. ft. | 3–5 |
| GR9T960803BN | 80,000 BTU | Up to 2,800 sq. ft. | 4–6 |
| GR9T961004CN | 100,000 BTU | Up to 3,500 sq. ft. | 5–7 |
| GR9T961205DN | 120,000 BTU | 4,000+ sq. ft. | 6+ |
- Request your installation quote.
- Schedule a home comfort consultation.
- Heating load assessment and equipment sizing.
- Product recommendation and quotation approval.
- Convenient installation scheduling.
- Removal and disposal of existing furnace (where applicable).
- Professional installation, venting, gas, electrical, and condensate connections.
- Complete safety testing, commissioning, and homeowner walkthrough.
The Goodman GR9T96 Series includes a 10-Year Parts Limited Warranty, 10-Year Unit Replacement Limited Warranty, and a 99-Year Heat Exchanger Limited Warranty for eligible registered owner-occupied installations, subject to Goodman warranty terms and registration requirements.
4Most Energy Labour Warranty
All installations are backed by our workmanship warranty for added confidence. Warranty claims are coordinated by our team to simplify the service process.
Maintenance Plans
Maintenance plans starting from $12.99/month help protect your investment with annual inspections, performance checks, priority scheduling, and discounted repair services.
