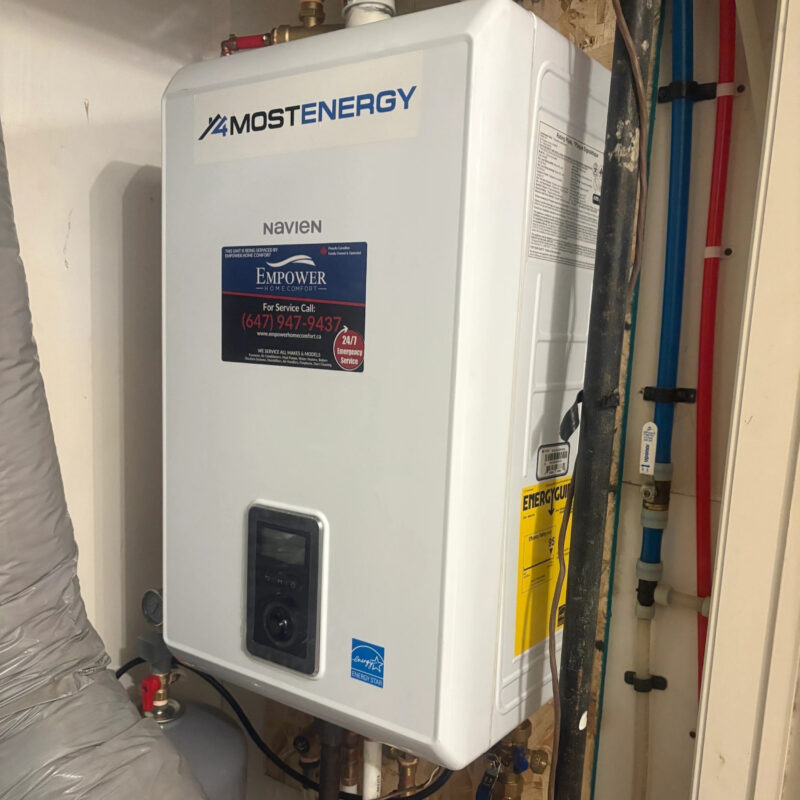

Navien NFC-250/175H – Supplied & Professionally Installed by 4Most Energy
The Navien NFC-250/175H combines space heating and domestic hot water in a single wall-hung condensing boiler. Its stainless steel fire tube heat exchanger is designed for durability and efficient heat transfer, while the separate stainless steel flat-plate DHW heat exchanger provides domestic hot water independently from the space-heating heat exchanger. The unit is rated at 95.0% AFUE, with heating input ranging from 13,300 to 175,000 BTU/h and DHW input ranging from 13,300 to 210,000 BTU/h.
The NFC-250/175H uses a fully modulating metal-fiber premix burner and provides a heating turndown ratio of up to 15:1. This allows the boiler to modulate its output according to system demand rather than operating continuously at maximum input. The integrated boiler pump and built-in controls for up to three zone pumps or three zone valves can simplify system installation and hydronic zoning.
Proper installation requires attention to gas supply, venting, condensate drainage, electrical supply, hydronic connections, and domestic water connections. The brochure specifies 2" or 3" venting options, with 2" venting up to 65 feet under the stated installation conditions. The unit uses a 120V AC, 60Hz electrical supply and has a 3/4" NPT gas connection. Gas supply and venting must be installed according to applicable codes and manufacturer requirements.
Correct system sizing is essential. Heating requirements should be determined from the home's heat-loss requirements, while domestic hot-water requirements should be evaluated separately. 4Most Energy can assess the existing system, determine application requirements, and configure the installation accordingly.
Documents
Why Install the Navien NFC-250/175H with 4Most Energy?
- 95.0% AFUE condensing efficiency for space heating.
- 175,000 BTU/h maximum heating input with modulation down to 13,300 BTU/h.
- 210,000 BTU/h maximum DHW input for high domestic hot-water demand.
- Up to 5.4 GPM DHW flow at a 70°F temperature rise.
- Stainless steel fire tube heat exchanger designed for durability and efficient heat transfer.
- Fully modulating metal-fiber premix burner with sophisticated gas-flow control.
- Built-in controls for up to three zone pumps or three zone valves.
- Advanced user interface with setup wizard, backlit display, and click-wheel controls.
- Integrated boiler pump for hydronic space heating and DHW operation.
- NaviLink Wi-Fi control available as an add-on accessory for remote temperature control, usage data, and diagnostic notifications.
| Specification | NFC-250/175H |
|---|---|
| Model | NFC-250/175H |
| Product Type | Condensing combination boiler |
| Heating Input | 13,300–175,000 BTU/h |
| DHW Input | 13,300–210,000 BTU/h |
| Heating Capacity | 161,000 BTU/h |
| Net AHRI Rating – Water | 140,000 BTU/h |
| Efficiency | 95.0% AFUE |
| Fuel Type | Natural Gas / Propane convertible |
| Installation Type | Indoor wall-hung |
| Venting Type | Forced-draft direct vent |
| Venting Options | 2" or 3" PVC, CPVC, approved polypropylene, special gas vent, or stainless steel |
| 2" Venting | Up to 65 ft under stated conditions |
| Gas Connection | 3/4" NPT |
| Electrical | 120V AC, 60Hz |
| Maximum Power Consumption | Less than 15 amperes |
| Heating Supply/Return | 1" NPT |
| DHW Supply/Return | 3/4" NPT |
| Water Pressure – Heating | 12–80 PSI |
| DHW Water Pressure | 15–150 PSI |
| DHW Minimum Flow | 0.5 GPM |
| DHW Flow @ 45°F Rise | 7.9 GPM |
| Dimensions | 17.3"W × 17.3"D × 33.5"H |
| Boiler Weight | 141 lb |
| Weight with Water | 170 lb |
| Boiler Water Volume | 4.5 gallons |
| Heat Exchanger Material | Stainless steel |
| Casing | Cold-rolled carbon steel |
| Ignition | Electronic ignition |
| Vent Clearance | 0" to combustibles |
| Model | Heating Input | DHW Input | Recommended Home Size | Recommended Occupants |
|---|---|---|---|---|
| NFC-250/175H | 13,300–175,000 BTU/h | 13,300–210,000 BTU/h | Must be determined by heat-loss calculation | Must be determined from DHW demand |
The Navien NFC-250/175H is engineered for large homes, multi-suite buildings, or ight-commercial spaces up to ~4,500 sq ft with 5 or more bathrooms and high hot-water demand.
- Heating Output: 175,000 BTU/h
- Domestic Hot-Water Output: 210,000 BTU/h
- Flow Rate: Max 10.8 GPM / Avg 8.5 GPM
Ideal for multiple hydronic eating zones, including in-floor radiant loops, radiators, and air-handler systems.
Provides stable temperature control for high-demand domestic and heating loads.
⚙️ Installed and commissioned by 4Most Energy with expert zoning, sizing guidance, and priority after-installation service across Ontario.
Best Fit ( Size & Applications )
Ideal for large homes, duplexes, or light-commercial spaces up to ≈ 4,500 sq ft.
Supports up to 4 bathrooms with simultaneous hot-water usage.
Excellent for multi-zone radiant heating, radiators, air handlers, and mixed hydronic systems.
Handles high-heat-load buildings, basement suites, or add-on units with ease.
1. Request Installation Quote Provide information about your existing heating and hot-water system so the installation requirements can be reviewed.
2. System Sizing Consultation Heating requirements and domestic hot-water demand are evaluated to determine whether the NFC-250/175H is appropriate.
3. Equipment Recommendation 4Most Energy confirms the equipment configuration, installation requirements, venting approach, gas requirements, and system connections.
4. Installation Scheduling Once the project scope and quotation are approved, an installation date is arranged.
5. Removal of Existing Equipment Where applicable, the existing boiler and associated equipment are removed as included in the approved installation scope.
6. Installation & System Connection The NFC-250/175H is wall-mounted and connected to the heating supply and return, domestic hot-water lines, gas, electrical supply, venting, combustion air, and condensate drainage as required.
7. Safety Testing The installation is checked for proper operation, combustion, water pressure, gas connections, venting, and safety controls.
8. Final Commissioning The system is configured and tested to verify heating and domestic hot-water operation.
The Navien NFC-H Series warranty, as stated in the manufacturer’s 2025 brochure, provides different coverage for residential and commercial installations. For single-family residential locations, the heat exchanger is covered for 10 years, parts for 5 years, and labor for 1 year. Commercial installations receive 5 years of heat exchanger coverage, 3 years for parts, and 1 year for labor.
| Warranty Coverage | Residential* | Commercial |
|---|---|---|
| Heat Exchanger | 10 Years | 5 Years |
| Parts | 5 Years | 3 Years |
| Labor | 1 Year | 1 Year |
*Residential warranty applies to single-family residential locations. For complete warranty details, please refer to Navien's full warranty documentation.
Warranty Claim Process
For warranty service, 4Most Energy can assist with identifying the issue and coordinating the appropriate service process. Warranty eligibility and coverage are subject to Navien’s full warranty terms and conditions.
Optional Maintenance Plan
Maintenance plans starting from $12.99/month
A maintenance plan can help keep the combi-boiler operating properly through scheduled professional service and system checks. Enrollment is optional and can be discussed with 4Most Energy.
Service Area
Greater Toronto Area (GTA) and surrounding regions
Toronto, Markham, Richmond Hill, Vaughan, Aurora, Newmarket, Scarborough, Brampton, and Mississauga.
Extended Service Area: Stouffville, Oshawa, Barrie, Orangeville, Hamilton, St. Catharines, Guelph, Kitchener.
Navien Boiler FAQs
Answered by 4Most Energy Experts
Is the Navien NFC-250/175H a combi-boiler?
Yes. The NFC-250/175H is a high-capacity condensing combi-boiler that provides both hydronic space heating and domestic hot water from one wall-hung system. It uses a stainless steel fire tube heat exchanger for space heating and a separate stainless steel flat-plate heat exchanger for domestic hot water.
How much heating capacity does the NFC-250/175H provide?
The NFC-250/175H has a heating input range of 13,300 to 175,000 BTU/h, with a rated heating capacity of 161,000 BTU/h. Its 95.0% AFUE rating provides high-efficiency operation for hydronic heating applications.
How much hot water can the NFC-250/175H produce?
The NFC-250/175H has a maximum domestic hot-water input of 210,000 BTU/h. Its published DHW performance reaches 5.4 GPM at a 70°F temperature rise and up to 7.9 GPM at a 45°F temperature rise, depending on installation conditions.
Can the NFC-250/175H heat my whole house and provide hot water at the same time?
Yes. The NFC-H series is designed to provide both space heating and domestic hot water from a single system. The NFC-250/175H uses separate heat exchangers for heating and DHW to support both functions in one compact wall-hung appliance.
Is the NFC-250/175H suitable for a large home?
It can be suitable for larger residential applications, but square footage alone should not be used to size the boiler. The correct model depends on the home's heat-loss requirements, heating zones, insulation, windows, existing hydronic system, and domestic hot-water demand. 4Most Energy can evaluate the application and recommend the appropriate capacity.
Can the NFC-250/175H work with multiple heating zones?
Yes. The NFC-250/175H has built-in controls for up to three zone pumps or three zone valves. The control board supplies 120VAC for zone pumps and 24VAC for zone valves. Additional control equipment can be used when a system requires more zoning.
Does the NFC-250/175H use a stainless steel heat exchanger?
Yes. The boiler uses a stainless steel fire tube heat exchanger for space heating. Navien's brochure describes the heat exchanger as an ASME-certified, H-stamped design incorporating automated laser welding technology. The DHW side uses a separate stainless steel flat-plate heat exchanger.
Can the NFC-250/175H be converted from natural gas to propane?
The NFC-H series is designed for field gas convertibility. The brochure specifies dual Venturi technology and conversion capability for natural gas and propane, including high-altitude applications up to 10,100 feet when configured according to Navien's requirements. Gas conversion must be completed using the appropriate manufacturer procedures and components.
What type of venting does the NFC-250/175H require?
The NFC-250/175H is an indoor wall-hung, forced-draft direct-vent appliance. Navien specifies 2" or 3" venting using approved materials including PVC, CPVC, polypropylene, special gas vent, or stainless steel, subject to the manufacturer's installation requirements. The brochure specifies 2" venting up to 65 feet under the stated conditions.
How long is the Navien NFC-250/175H warranty?
For single-family residential applications, the supplied Navien brochure lists a 10-year heat exchanger warranty, 5-year parts warranty, and 1-year labor warranty. Commercial warranty terms are different.
