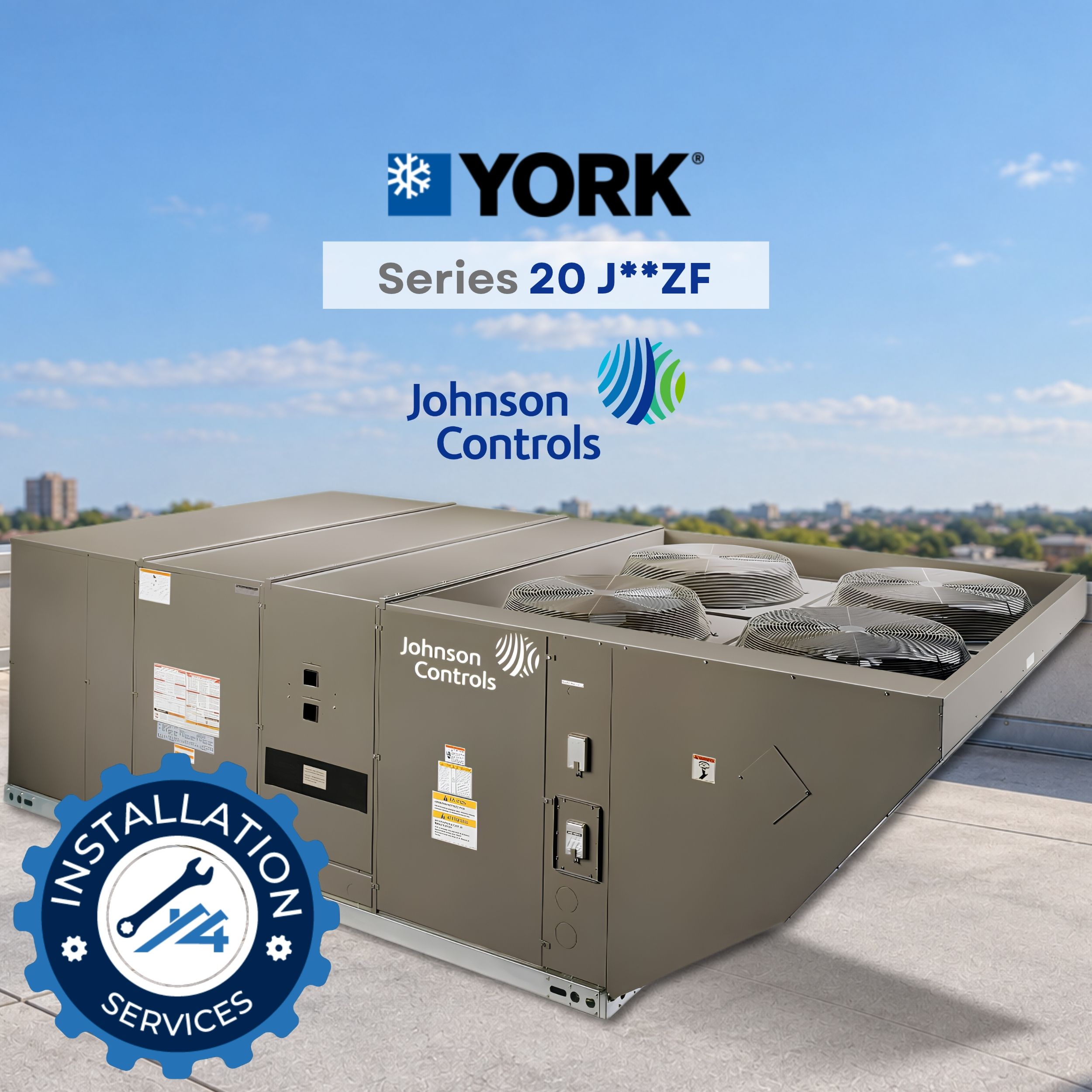

York® Series 20 ZF (J**ZF) Packaged Rooftop Unit – Supplied & Professionally Installed by 4Most Energy
The York® Series 20 ZF (J**ZF) is the standard-efficiency packaged rooftop unit of the Series 20 platform, built for large commercial and industrial loads from 15 to 25 nominal tons. It is rated up to 11.0 EER and 13.2 IEER, with dual independent refrigerant circuits and two-stage compressor unloading (50/100%) for dependable part-load operation. Gross cooling capacities range from 175,000 to 279,000 Btu/h across four sizes — J15ZF, J18ZF, J20ZF and J25ZF — with scroll compressors, split-face condenser coils, and belt-drive centrifugal evaporator blowers as standard on R-410A refrigerant. Balanced two-stage gas heat delivers 80% steady-state efficiency through aluminized steel (standard) or stainless steel (optional) tubular heat exchangers, and the unit is also available cooling-only or with electric heat. Manufactured by Johnson Controls in an ISO 9001 certified facility.
Rated performance depends entirely on correct field installation. Ontario installations require verified roof curb structural capacity for units up to 2,597 lb, a properly sized gas line and venting for two-stage combustion up to 400 MBH input, and electrical service matched to the unit's 208/230/460/575V, 3-phase rating. Refrigerant circuit balancing, combustion setup, and structural curb support must be commissioned correctly, or the unit will underperform against its AHRI-rated capacity. 4Most Energy's licensed gas technicians perform combustion analysis, dual-circuit refrigerant charge verification, and Smart Equipment™ controller commissioning on every packaged rooftop unit installation in Toronto and across the GTA, with each installation documented for TSSA and ESA compliance.
Replacement Option
The York® Series 20 J**ZF can replace older Trane, Lennox, Daikin, Rheem, and AAON large-tonnage packaged rooftop units using an appropriate roof curb adapter, letting building owners upgrade to dependable cooling and heating without modifying existing roof penetrations or ductwork. The J18ZF–J25ZF models share a common footprint with the Series 20 J**ZJ (high-efficiency) and J**ZR (hot gas reheat) lines, simplifying roof curb planning and mixed-fleet servicing.
Warranty
York backs the Series 20 J**ZF with a 1-year complete unit warranty, a 5-year compressor warranty, and a 10-year aluminized steel gas heat exchanger warranty (stainless steel heat exchanger available as a factory option). 4Most Energy handles startup, combustion test documentation, and warranty registration on your behalf.
Documents
Why Install the York Series 20 J**ZF with 4Most Energy?
Gas Heat & Combustion Expertise
Licensed TSSA gas technicians size the gas line for two-stage heat up to 400 MBH, verify supply pressure, and complete combustion analysis at startup.
Proper System Sizing
We start with a commercial block load calculation, then confirm tonnage, gas heat input, and electrical and gas capacity before ordering.
Professional Rooftop Installation
Crane rigging at all four base-rail corners, curb verification, ductwork, gas, electrical, and controls coordinated in one project.
Dual-Circuit Refrigerant Expertise
Charge verification and balancing across both independent R-410A refrigerant circuits so each circuit delivers its rated capacity.
Transparent Installation Planning
Before installation, we review the existing rooftop unit, curb, gas and electrical service, and access requirements, so your quote reflects the real scope of work.
Ongoing Maintenance Support
Annual coil cleaning, dual-circuit charge checks, belt and filter replacement, combustion analysis, and Smart Equipment™ diagnostics.
- Standard-efficiency baseline up to 11.0 EER and 13.2 IEER, offering dependable performance at a lower equipment cost than the Series 20 J**ZJ high-efficiency line.
- Dual independent refrigerant circuits scroll compressors provide 50/100% capacity steps for staged, efficient operation.
- Split-face condenser coils two condenser fan motors per unit, with 3/8-inch copper tube / aluminum fin evaporator coils for proven reliability.
- Balanced two-stage gas heat 80% steady-state efficiency with aluminized steel (standard) or stainless steel (optional) tubular heat exchangers.
- Smart Equipment™ control platform on-board diagnostics, fault message display, anti-short-cycle protection, and BACnet MS/TP, Modbus, N2, and Verasys communication.
- Convertible duct connections bottom or horizontal connections, field-configurable without panel cutting.
- Full-perimeter base rails corner rigging holes for reliable overhead crane placement.
- Low-ambient capability compressor operation down to 25°F as standard, extended to 0°F with an accessory low-ambient kit.
- Common Series 20 footprint shared with the J**ZJ and J**ZR lines for mixed-fleet servicing and simplified roof curb planning.
- Certified construction CSA listed, ANSI Z21.47 and UL 1995 / CAN/CSA C22.2 No. 236-M90 compliant, manufactured in an ISO 9001 certified facility.
Series 20 J**ZF Specifications
| Model | Nominal Tons | Gross Cooling (Btu/h) | Net Cooling (Btu/h) | EER | Max IEER (IntelliSpeed) | Refrigerant Circuits | Compressor Steps | Gas Heat Efficiency | Sound (dBA, AHRI 270) |
|---|---|---|---|---|---|---|---|---|---|
| J15ZF | 15 | 175,000 | 172,000 | 11.0 | 13.2 | 2 | 50/100% | 80% | 92 |
| J18ZF | 17.5 | 208,000 | 204,000 | 11.0 | 13.1 | 2 | 50/100% | 80% | 92 |
| J20ZF | 20 | 254,500 | 240,000 | 10.0 | 12.5 | 2 | 50/100% | 80% | 92 |
| J25ZF | 25 | 279,000 | 270,000 | 10.0 | 11.6 | 2 | 50/100% | 80% | 92 |
Baseline configuration shown: standard-static constant-volume indoor blower, no electric heat, two-stage gas heat. High-static blowers, electric heat,
and other gas heat sizes are available. Ratings per AHRI standards; outdoor sound per AHRI Standard 270.
| Physical & Electrical Data | J15ZF | J18ZF | J20ZF | J25ZF |
|---|---|---|---|---|
| Nominal airflow (CFM) | 4,430 | 5,300 | 6,200 | 6,750 |
| System power (kW) | 15.0 | 18.5 | 24.7 | 27.0 |
| Dimensions L × W × H (in.) | 125-1/4 × 92 × 48-5/8 | 136-1/4 × 92 × 52-5/8 | 136-1/4 × 92 × 52-5/8 | 136-1/4 × 92 × 52-5/8 |
| Operating weight (lb) | 1,870 | 2,006 | 2,533 | 2,597 |
| Roof curb height (in.) | 14 | 14 | 14 | 14 |
| Electrical service | 208/230/460/575V, 3-phase | 208/230/460/575V, 3-phase | 208/230/460/575V, 3-phase | 208/230/460/575V, 3-phase |
| Base electrical MCA | Confirmed at quote | Confirmed at quote | Confirmed at quote | Confirmed at quote |
The J15ZF cabinet has a slightly smaller footprint (125-1/4 in. length, 48-5/8 in. height) than the J18ZF–J25ZF models. Base electrical MCA figures are model- and
voltage-specific (208/230V, 460V, 575V) and are confirmed at the time of quote based on the exact configuration selected.
Sizing a Series 20 J**ZF begins with a commercial Manual N or equivalent block load calculation for the building, factoring in occupancy, envelope, and process loads typical of large commercial and industrial spaces. Select nominal tonnage (15 to 25 tons) to match the calculated load, then confirm the gas heat input size based on the building heating load and available gas service. Buildings prioritizing lower operating costs over a longer ownership period should compare the Series 20 J**ZJ high-efficiency line, which shares the same general footprint at a higher EER/IEER rating; buildings needing dedicated humidity control should consider the Series 20 J**ZR with hot gas reheat. 4Most Energy's site assessment confirms final model selection against actual roof curb, electrical, and gas infrastructure before ordering.
Installation & Assessment Checklist
| Phase | Description & Key Requirements | |
|---|---|---|
| Step 1 | Site Assessment | 4Most Energy evaluates roof curb structural capacity, gas line sizing, electrical service, and crane access. |
| Step 2 | Equipment Selection | Confirm the J**ZF model, tonnage, gas heat input, and heat exchanger option based on the load calculation. |
| Step 3 | Permitting | Secure required building, gas, and electrical permits per the Ontario Building Code and the local authority having jurisdiction. |
| Step 4 | Rigging & Placement | The unit is craned into position on the roof curb using the base-rail rigging points at all four corners. |
| Step 5 | Connection & Commissioning | Licensed technicians complete the gas line connection, electrical hookup, ductwork tie-in, dual-circuit refrigerant charge verification, combustion analysis, and Smart Equipment™ controller setup. |
| Step 6 | Final Inspection & Documentation | Startup report, combustion test results, and warranty registration are completed and provided to the building owner. |
York® Series 20 J**ZF units carry a 1-year complete unit parts warranty and a 5-year compressor warranty from the date of installation. The standard aluminized steel gas heat exchanger carries a 10-year warranty, with a stainless steel heat exchanger available as a factory option. Warranty coverage requires professional installation and startup by a licensed contractor, along with documented annual maintenance.
Recommended annual maintenance includes condenser and evaporator coil cleaning, refrigerant charge verification across both circuits, belt and filter replacement, electrical connection inspection, combustion analysis on gas-heat units, and Smart Equipment™ control board diagnostic review. 4Most Energy offers scheduled maintenance plans that keep this documentation in place for your warranty.
Service Area
Greater Toronto Area (GTA) and surrounding regions
Toronto, Markham, Richmond Hill, Vaughan, Aurora, Newmarket, Scarborough, Brampton, and Mississauga.
Extended Service Area: Stouffville, Oshawa, Barrie, Orangeville, Hamilton, St. Catharines, Guelph, Kitchener.
Frequently Asked Questions
What is the difference between the Series 20 J**ZF, J**ZJ, and J**ZR lines?
All three share a common cabinet footprint. The J**ZF is the standard-efficiency baseline, the J**ZJ delivers the highest efficiency tier with four refrigerant circuits, and the J**ZR adds a factory-standard hot gas reheat coil for humidity control.
Is the J**ZF a good fit for budget-conscious commercial projects?
Yes. The J**ZF offers dependable standard-efficiency cooling and heating at a lower equipment cost than the high-efficiency J**ZJ line, making it well suited to projects where upfront capital cost is the primary consideration.
What sizes does the Series 20 J**ZF come in?
Four sizes: 15, 17.5, 20, and 25 nominal tons (models J15ZF, J18ZF, J20ZF, and J25ZF), covering large commercial and industrial cooling loads.
Can the J**ZF replace my existing rooftop unit without changing the roof curb?
In many cases, yes. The J18ZF–J25ZF models share a common footprint with other Series 20 models, and roof curb adapters are available for transitioning from other manufacturers' curbs. The J15ZF has a slightly smaller cabinet, so 4Most Energy confirms curb compatibility during the site assessment.
Do you need a crane to install the Series 20 J**ZF?
Yes. At 1,870 to 2,597 lb, the J**ZF is craned onto the roof curb using the base-rail rigging points at all four corners. 4Most Energy plans the lift and crane access during the site assessment and includes it in your quote.
What maintenance does the Series 20 J**ZF need?
We recommend annual coil cleaning, refrigerant charge verification on both circuits, belt and filter replacement, electrical inspection, combustion analysis on gas-heat units, and a Smart Equipment™ diagnostic review. Documented annual maintenance is also required to keep warranty coverage.
Are there energy rebates available for a Series 20 J**ZF installation in Ontario?
Rebate eligibility depends on the efficiency tier and the specific commercial program's thresholds, so 4Most Energy confirms current utility incentive eligibility at the time of quote. Residential programs do not apply to commercial rooftop equipment.
