½ to 6 Ton | R-32 Low-GWP Refrigerant | Supplied & Professionally Installed by 4Most Energy

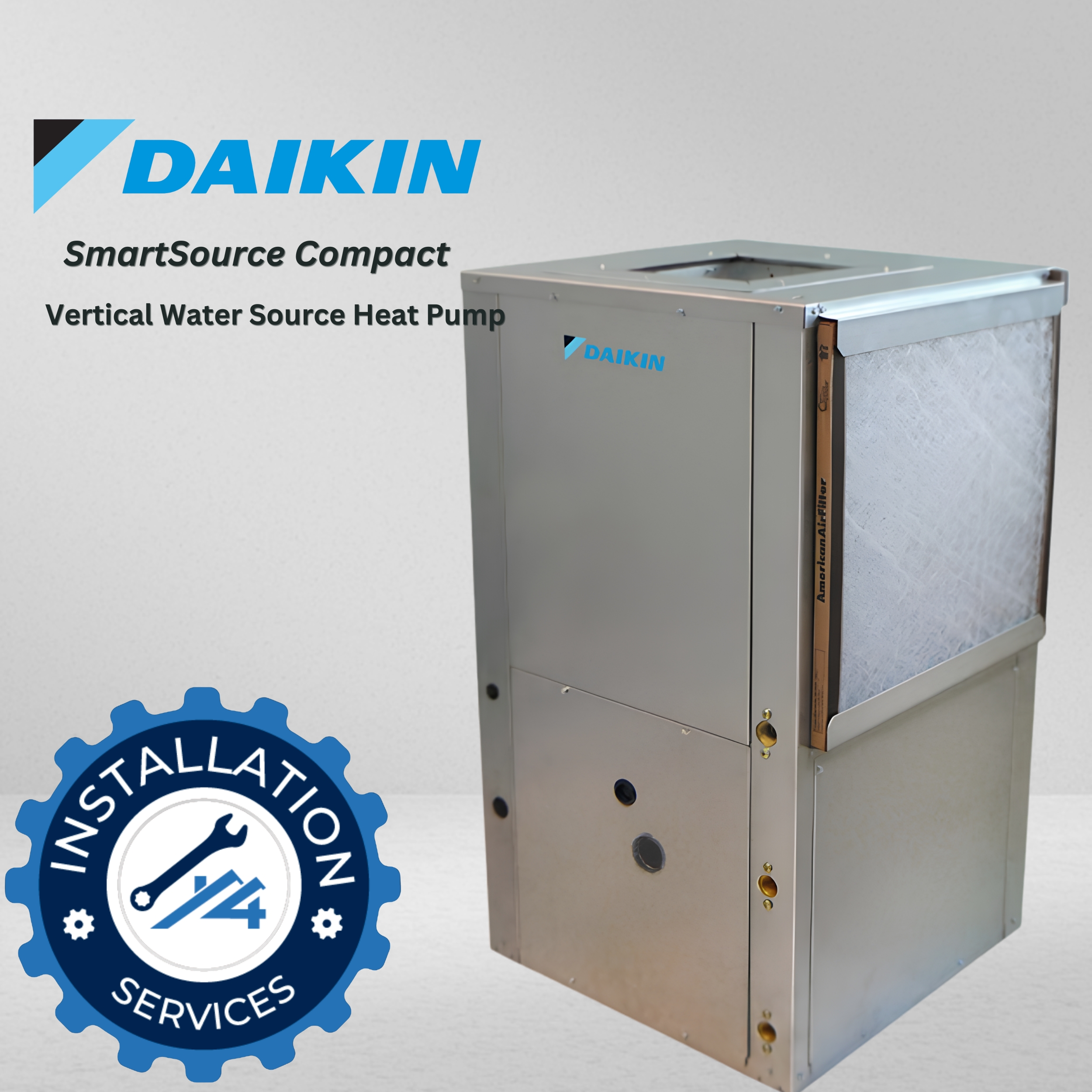

The Daikin SmartSource® Compact vertical water source heat pump is a floor-mounted solution designed for commercial, condominium, multi-residential, office, retail, lodging, school, and other applications where equipment space is limited.
Available in capacities from 7,000 to 70,000 Btuh, the SmartSource Compact vertical series combines a compact cabinet with efficient water-source heating and cooling, optional EC fan motors, smart dehumidification, waterside economizer capability, advanced controls, and flexible boiler-tower or geothermal applications.
4Most Energy supplies, installs, repairs, and services water source heat pumps, including replacement of existing equipment and new installations.
Model Family Specifications
| Model Family | Configuration | Nominal Capacity Range | Sizes | Refrigerant |
|---|---|---|---|---|
| WSCV | Vertical, single-stage | ½–6 ton | 007–070 | R-32 |
| WSDV | Vertical, where specified by configuration | ½–6 ton | 007–070 | R-32 |
Daikin identifies SmartSource Compact as a small-capacity WSHP family available in both horizontal and vertical configurations. Current Compact models include WSCV and WSDV vertical configurations, with sizes 007–070 and low-GWP R-32 refrigerant.
WSCV Performance & Dimensions Specifications
| Model | Capacity | Airflow | Water Flow | EER Water Loop | COP Water Loop | Dimensions |
|---|---|---|---|---|---|---|
| WSCV007 | ½ Ton / 7,000 Btuh | 250 CFM | 1.8 GPM | 12.8 | 4.5 | 19.0"W × 19.0"D × 24.0"H |
| WSCV009 | ¾ Ton / 9,000 Btuh | 300 CFM | 2.3 GPM | 12.2 | 4.3 | 19.0"W × 19.0"D × 24.0"H |
| WSCV012 | 1 Ton / 12,000 Btuh | 400 CFM | 3.0 GPM | 12.2 | 4.3 | 19.0"W × 19.0"D × 24.0"H |
| WSCV015 | 1¼ Ton / 15,000 Btuh | 500 CFM | 3.5 GPM | 13.8 | 5.1 | 21.5"W × 21.5"D × 32.0"H |
| WSCV019 | 1½ Ton / 19,000 Btuh | 600 CFM | 4.5 GPM | 13.8 | 4.7 | 21.5"W × 21.5"D × 32.0"H |
| WSCV024 | 2 Ton / 24,000 Btuh | 775 CFM | 6.0 GPM | 13.4 | 4.4 | 21.5"W × 21.5"D × 39.0"H |
| WSCV030 | 2½ Ton / 30,000 Btuh | 1,000 CFM | 7.1 GPM | 14.0 | 4.4 | 21.5"W × 21.5"D × 39.0"H |
| WSCV036 | 3 Ton / 36,000 Btuh | 1,200 CFM | 9.1 GPM | 13.0 | 4.3 | 21.5"W × 26.0"D × 44.0"H |
| WSCV042 | 3½ Ton / 42,000 Btuh | 1,400 CFM | 10.0 GPM | 13.7 | 4.6 | 21.5"W × 26.0"D × 44.0"H |
| WSCV048 | 4 Ton / 48,000 Btuh | 1,600 CFM | 12.0 GPM | 14.2 | 5.0 | 24.0"W × 32.5"D × 46.0"H |
| WSCV060 | 5 Ton / 60,000 Btuh | 2,000 CFM | 15.0 GPM | 13.2 | 4.6 | 24.0"W × 32.5"D × 46.0"H |
| WSCV070 | 6 Ton / 70,000 Btuh | 2,200 CFM | 18.0 GPM | 13.5 | 4.6 | 26.0"W × 33.25"D × 54.125"H |
Why Install the Daikin SmartSource Compact Vertical with 4Most Energy?
- R-32 low-GWP refrigerant in the current SmartSource Compact platform.
- ½–6 ton capacity range covering sizes 007 through 070.
- Compact vertical cabinet designed for applications where floor space is limited.
- Standard or geothermal application flexibility for different water-loop designs.
- Optional EC fan motors with adjustable airflow settings.
- Smart dehumidification using hot gas reheat and airflow management where specified.
- Waterside economizer option for cooling using suitable cold loop water without mechanical compressor cooling.
- MicroTech® controls with optional BACnet® communication for building automation integration.
- MERV 8 and MERV 13 filtration options.
- Heavy-gauge galvanized steel cabinet with multiple insulation and sound-control options.
- Dual-level compressor vibration isolation for reduced vibration transmission.
- Service-accessible design with removable control box and slide-out fan assembly on applicable sizes.
| Parameter | Value |
|---|---|
| Product Type | Vertical Water Source Heat Pump |
| Model Family | SmartSource Compact WSCV / WSDV |
| Capacity Range | ½–6 tons |
| Nominal Cooling Range | 7,000–70,000 Btuh |
| Refrigerant – Current Compact Platform | R-32 |
| Configuration | Vertical, floor-mounted |
| Application | Water loop / geothermal |
| Compressor | Rotary / scroll depending on size and configuration |
| Fan Motor | PSC standard; EC options available |
| Controller | MicroTech® |
| BAS Communication | BACnet® option |
| Water Flow | 1.5 / 3.0 / 4.0 GPM per ton minimum / nominal / maximum |
| Standard Filter | 1" disposable |
| Optional Filters | 2" MERV 8 / 4" MERV 13 |
| Cabinet | Heavy-gauge G-60 galvanized steel |
| Return Air | Left-hand or right-hand configuration |
| Discharge | Top discharge |
| Condensate Connection | ¾" FPT |
| Water Connections | Model-dependent FPT connection |
| Voltage Options | 115/60/1, 208–230/60/1, 208–230/60/3, 265/60/1, 460/60/3, 575/60/3 depending on size |
| Certifications | AHRI / ETL / ETLC as applicable to the documented configuration |
SmartSource Compact vertical units are selected according to nominal capacity, calculated heating/cooling load, airflow, water-loop conditions, and installation requirements.
4Most Energy does not recommend selecting a WSHP simply by matching square footage or replacing an existing unit with the same tonnage. The correct model depends on the served zone, envelope, glazing, occupancy, ductwork, entering-water temperature, and available water flow.
| Model | Nominal Capacity | Typical Application |
|---|---|---|
| WSCV007 | ½ Ton / 7,000 Btuh | Small individual zones |
| WSCV009 | ¾ Ton / 9,000 Btuh | Small offices / individual zones |
| WSCV012 | 1 Ton / 12,000 Btuh | Small commercial or condominium zones |
| WSCV015 | 1¼ Ton / 15,000 Btuh | Small-to-medium zones |
| WSCV019 | 1½ Ton / 19,000 Btuh | Medium zones |
| WSCV024 | 2 Ton / 24,000 Btuh | Medium commercial / condo zones |
| WSCV030 | 2½ Ton / 30,000 Btuh | Medium-to-large zones |
| WSCV036 | 3 Ton / 36,000 Btuh | Larger commercial zones |
| WSCV042 | 3½ Ton / 42,000 Btuh | Larger zones |
| WSCV048 | 4 Ton / 48,000 Btuh | Large commercial zones |
| WSCV060 | 5 Ton / 60,000 Btuh | Large zones |
| WSCV070 | 6 Ton / 70,000 Btuh | Highest-capacity Compact vertical applications |
1. Site Assessment We inspect the existing equipment, installation space, water loop, electrical supply, ductwork, controls, and condensate arrangement.
2. Load Calculation & Unit Sizing The required capacity is determined from the actual served zone rather than simply copying the existing equipment size.
3. Equipment Recommendation 4Most Energy recommends the appropriate SmartSource Compact vertical size and configuration based on the application.
4. Installation Scheduling Once equipment, materials, and installation requirements are confirmed, the installation is scheduled.
5. Existing Equipment Removal Where applicable, the existing heat pump is disconnected and removed safely.
6. Vertical Unit Installation The new SmartSource Compact vertical unit is positioned and connected to:
- Supply and return water piping
- Ductwork
- Condensate drain
- Electrical supply
- Low-voltage controls
- Thermostat or control system
7. Safety Testing The system is checked for proper electrical operation, water flow, condensate drainage, controls, and safety functions.
8. Final Commissioning The system is operated through heating and cooling modes and checked for proper airflow, water flow, temperature performance, and control operation.
Standard Warranty:
All parts are covered for 1 year after start-up or 18 months after shipment, whichever occurs first.
Optional Extended Warranty:
Optional 1-year or 4-year extended coverage is available for:
- Compressor
- Refrigeration circuit
- Complete unit
Coverage is subject to Daikin's applicable warranty terms and conditions.
4Most Energy can assist with warranty registration and service coordination for equipment supplied and installed by our team.
Service Area
Greater Toronto Area (GTA) and surrounding regions
Toronto, Markham, Richmond Hill, Vaughan, Aurora, Newmarket, Scarborough, Brampton, and Mississauga.
Extended Service Area: Stouffville, Oshawa, Barrie, Orangeville, Hamilton, St. Catharines, Guelph, Kitchener.
Frequently Asked Questions
What is a vertical water source heat pump?
A vertical water source heat pump is a floor-mounted HVAC unit that transfers heat between the building and a water loop. It can provide both heating and cooling using the same equipment.
Where is the SmartSource Compact vertical used?
Daikin identifies applications including schools, offices, lodging, condominiums, retail facilities, new construction, existing buildings, and replacement projects where space is limited.
Is the vertical SmartSource Compact available in different sizes?
Yes. The Compact family covers sizes from 007 through 070, corresponding to approximately ½ through 6 tons.
Does it use R-32 refrigerant?
The current Daikin SmartSource Compact platform uses low-GWP R-32 refrigerant.
Can it be used with geothermal systems?
Yes. Daikin identifies SmartSource Compact as configurable for both geothermal and boiler-tower applications.
Can 4Most Energy replace my existing water source heat pump?
Yes. 4Most Energy can assess an existing unit and determine whether repair, replacement, or a different configuration is appropriate.
Can you repair the existing unit instead of replacing it?
Yes. If the existing water source heat pump is serviceable, repair may be considered instead of replacement.
How do I know which size I need?
The correct size should be determined using the building or zone load, airflow, water-loop conditions, ductwork, and electrical requirements. 4Most Energy can assess these factors before ordering.
Does the vertical unit require ductwork?
Yes. The vertical SmartSource Compact is a ducted water source heat pump and must be connected to an appropriate air distribution system.
Does it require a gas line?
No. A water source heat pump uses electricity and a water loop rather than a natural-gas combustion system.
Does it require a cooling tower or geothermal loop?
It depends on the application. The system can be configured for standard boiler-tower water-loop applications or geothermal applications.
